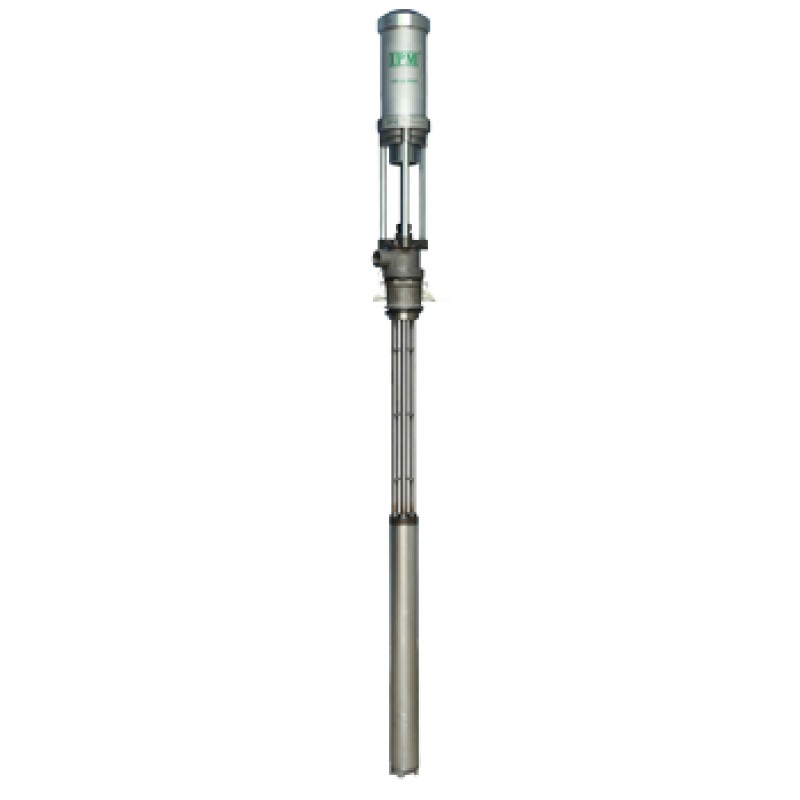

OP232C - IPM Stick Pumps
Air Operated Fluid Pump which is specially designed for corrosive materials.
Features
Fully air operated.
2 ball piston design provides uniform positive displacement.
Extremely durable pump with long life packing.
Specially designed piston seals do not come into contact with material pumped. Hence, a longer life span as it is able to handle highly problematic fluids like Isocyanates which crystallizes on piston rods upon contact with moisture in air and rupture seals.
Technical Information
Fluid Ratio : 2:1
Max Output Flow Int : 7.5 gpm(28.4 lpm)
Max Output Flow Cont : 5.0 gpm(18.9 Ipm)
Max Output Pressure : 360 psi (24.8 bar)
Max Air Input Pressure : 180 psi (12.4 bar)
Air Inlet Port : 1/4 npt(f)
Fluid Outlet Port : 3/4 npt(f)
Rod Piston Packings : UHMU PE or Telfon®
Other Seals : Viton®
Rod Cylinder : Stainless Steel
Other Wetted Parts : Stainless Steel
Weight : 24 Ibs.(11.8 Kg.)
Package : 6"x6"x58" (152mmx152mmx147cm) 26 Ibs.(11.8 Kg.)
